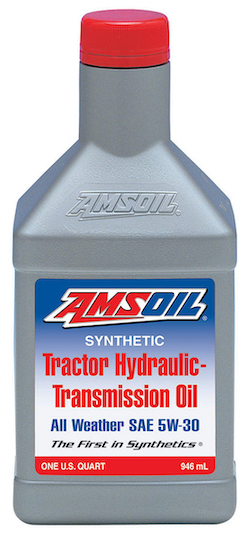

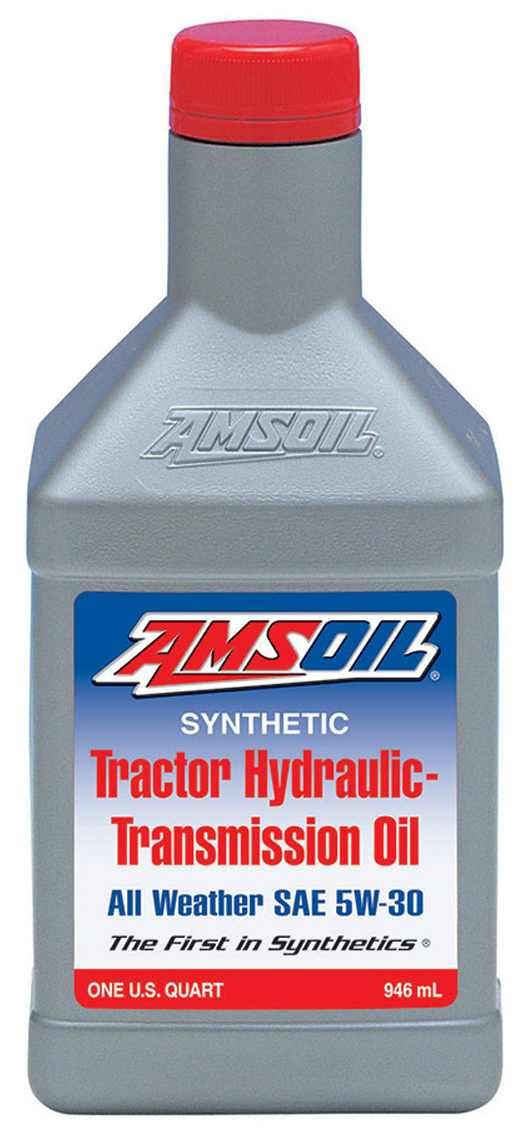

5W-30 Tractor Hydraulic/Transmission Oil (ATH)

 5W-30 Tractor Hydraulic/Transmission Oil (ATH)
Product Code: ATH • Brand: AMSOIL

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil is an all-weather Universal Tractor Transmission Oil (UTTO) engineered to meet the tough demands of heavy-duty, hydraulic-powered farm and commercial equipment.

Package sizes include:

1-Quart Bottle
1-Quart Bottles (case of 12)
5-Gallon Pail
30-Gallon Drum
55-Gallon Drum

See Pricing or Place an Order
MSDS Data Sheet

Product Details

Product Applications

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil is recommended for equipment combinations of transmissions, hydraulic systems, final drives, power take-off systems and wet brakes operating in "all-weather" hot and cold temperatures, including, but not limited to, those listed below. Consult your owner's manual for specific application requirements:

• Farm tractors and equipment
• Fork lift trucks
• Off-road equipment
• Lawn tractor hydrostatic transmissions
• Golf course mower hydrostatic systems
• Some 4x4 ATV models with wet-brake differentials

AMSOIL Hydraulic/Transmission Oil is recommended for transmission and hydraulic applications that require any of the listed specifications. Consult your owner's manual for specific application requirements.

Product Application Specs

AGCO/Deutz-Allis/Allis-Chalmers - PowerFluid PF-821 XL, 25741, 246634
AGCO White Farm (Oliver) - Q-1826, Q-1802, Q-1766B (UTHF), Q-1766, Q-1722, Q-1705, Type 55
Allison - C4, C3, C2
API GL-4
Case New Holland (CNH) - MAT 3505 (MS-1209), MS-1207 (Hy-Tran® Plus), MAT 3506 (MS-1210) (TCH Fluid JIC-145), MAT 3509 (MS-1230, M2C48C), Poclain Equipment high pressure systems, MAT 3525 (FNHA-2-C-201.00, M2C134D), MAT 3526 (FNHA-2-C-200.00 winter grade), MAT 3510 (MS-1317, GL-4), B-6, MS-1206 (PTF), MS-1205 (TFD-II), MS-1204 (TFD), JIC-185, JIC-144, JIC-143, B-5, M2C86B/C, M2C53A, M2C41B, M2CA/B/C, ESN-M2C77A, ESN-M2C41B, ESNM2C43, ESN-M2C48B/C, ESN-M2C53A/B, ESN-142A, ESN-M2C143, ESN-M2C92A, ESN-M2C159A/B/C, Renk-Doromat 873 or 874A/B Bus Automatic Transmission Fluid, Valtractores
Caterpillar - TO-2
Clark - TA 12, TA 18, HR 500, HR 600
Dresser CED - Trans/Hyd Fluid
Deutz-Allis - 25743, 272843
Deutz-Fahr
Sperry Vickers/Eaton - I-286-S, M-2950-S
Fendt (Non-Vario)
Fiat-Hesston - AF-87
Ford - ESN M2C86B, M2C86C, Fiat requiring M2C134D, FNHA-2-C-201.00
John Deere - J20C, J20D (winter grade), J14A/B/C, JDT303, J20A/B, J121A
Komatsu
Kubota - UDT/M80B
Landini - Tractor Hydraulic Fluid
Massey-Ferguson - M-1141 (Permatran® 821 XL, Formerly Permatran ® III), M-1110, M-1127A/B, M-1129A, M-1135, M-1138, M-1139, M-1143, M-1145
Parker Denison - HF-0, HF-1, HF-2
Sauer Sundstrand/Danfoss - Hydrostatic Transmission Fluid
Steiger - HTF (SEMS 17001)
Volvo - VCE 1273.03, WB101
Versatile - Recommended for use in Valmet, New Idea Power Units, Leyland Belarus, Specs 23M & 24M
ZF - TE-ML 03E, TE-ML 05F, TE-ML 06K, TE-ML 17E

® Registered Trademarks

Product Description

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil is an all-weather Universal Tractor Transmission Oil (UTTO) engineered to meet the tough demands of heavy-duty, hydraulic-powered farm and commercial equipment. Its unique formulation of synthetic base stocks and additives effectively reduces wear, resists heat, protects against rust and extends fluid and equipment service life. Synthetic Tractor Hydraulic/Transmission Oil is recommended for extended oil drains based on oil analysis.

Excellent Protection in Temperature Extremes

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil operates over a wide range of temperatures. It has a high viscosity index to maintain its lubricity at high operating temperatures, and it flows at temperatures as low as -47°F (-44°C) for improved equipment operation and wear protection at low temperatures. Synthetic Tractor Hydraulic/Transmission Oil exceeds the most demanding all-weather specifications of both Ford New Holland FNHA-2-C-200 & 2-C-201 and John Deere J20C & J20D, eliminating the need for seasonal oil changes.

Smooth Brake Operation

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil is formulated with durable friction-modifier additives that effectively suppress wet-brake chatter. Unlike lower-quality oils that can break down and cause vibration, AMSOIL Synthetic Tractor Hydraulic/Transmission Oil provides continuous frictional stability for long-term smooth brake operation.

Feature: Multi-Viscosity
Benefits: Excellent cold and hot weather protection, no seasonal change outs

Feature: Universal Applications
Benefits: Inventory consolidation, no misapplications

Feature: Stable Friction Modifier Additives
Benefits: Correct and decisive multi-disc/clutch operation, excellent control over brake chatter, smooth operation, extended oil and equipment life

Feature: Anti-Foam Additives
Benefits: Rapid air release, cooler operation, smooth brake operation, control over fade and spongy hydraulic response

Feature: Oxidation Inhibitors
Benefits: Excellent resistance to oil degradation at high temperatures, extended lubricant and equipment life

Feature: Seal and Hose Conditioners
Benefits: Compatible with all seal materials, seal and hose flexibility, positive seal seating, reduced oil leaking, extended seal and hose life, fewer blown hoses

Feature: Superior Anti-Wear Additives
Benefits: Scoring and gear wear protection under all load conditions, extended equipment life even under severe conditions, increased pump and valve life, may be used in final drives calling for a UTTO

INSTALLATION

AMSOIL Hydraulic/Transmission Oil is fully compatible with conventional tractor hydraulic/transmission oils. To install AMSOIL Hydraulic/Transmission Oil in a hydraulic system, drain the existing hydraulic/transmission oil, change filters and install AMSOIL Synthetic Tractor Hydraulic/Transmission Oil.

HEALTH & SAFETY

This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS).

Click here to view the MSDS Data Sheet for AMSOIL ATH.

Keep out of the reach of children. Don't pollute. Return used oil to collection centers.

Technical Data

TYPICAL TECHNICAL PROPERTIES
AMSOIL Synthetic Tractor Hydraulic/Transmission Oil (ATH)
SAE Viscosity 5W-30
Kinematic Viscosity @ 100°C, cSt (ASTM D-445) 9.8
Kinematic Viscosity @ 40°C, cSt (ASTM D-445) 53.7
Viscosity Index (ASTM D-2270) 170
Flash Point °C (°F) (ASTM D-92) 242 (468)
Fire Point °C (°F) (ASTM D-92) 260 (500)
Pour Point °C (°F) (ASTM D-97) -50 (-58)
Four Ball Wear Test
(ASTM D-4172B: 40 kg, 75°C, 1200 rpm, 1 hr.) Scar, mm
0.37
Cold Crank Simulator -30°C (ASTM D-5293) 5,207
Brookfield Viscosity (ASTM D-2683) @ -40°C 19,243

 5W-30 Tractor Hydraulic/Transmission Oil (ATH)

Did this product meet your expectations?

(click on a star to rate)

Product Name: 5W-30 Tractor Hydraulic/Transmission Oil (ATH)
Current Rating: 5 out of 5 stars
Votes & Reviews: 7 vote(s) and 6 user reviews.


A Verified Buyer is an individual who has purchased the reviewed product and submitted their review through a specific process that tracks purchase history.Reviewed by Dirtmover: space

Amazing results

Made a big, noticable improvement on Case IH Steiger 535 transmission. Smooth, predictable, fast shifting , compared to Case IH Hy-tran fluid. Consistent results from a number of tractors.

Item Reviewed: 5W-30 Tractor Hydraulic/Transmission Oil (ATH)
Discussion Url

A Verified Buyer is an individual who has purchased the reviewed product and submitted their review through a specific process that tracks purchase history.Reviewed by Kevin: space

Always prompt service

Great products, and prompt service, but very pricey

Item Reviewed: 5W-30 Tractor Hydraulic/Transmission Oil (ATH)
Discussion Url

A Verified Buyer is an individual who has purchased the reviewed product and submitted their review through a specific process that tracks purchase history.Reviewed by GEM: space

Will buy again

Seems to have smoothed operation and quieted the hydraulics in my Kubota tractor compared to Kubota UDT2.

Item Reviewed: 5W-30 Tractor Hydraulic/Transmission Oil (ATH)
Discussion Url

A Verified Buyer is an individual who has purchased the reviewed product and submitted their review through a specific process that tracks purchase history.Reviewed by jim: space

Synthetic hydro/tran oil

I have used this in my John Deere Hydrostatic/hydraulic transmission, for 2o years. It runs quieter, cooler and and develops more RPMs, It prevents Blowouts on my quick connects hydraulic connectors for the Front end loader on JD 4110. I lost several loader lift quick connects. when i changed to Amsoil Hydro, 15 years no blow outs. I used in my JD X758, and recently in my JD1025R, TLB which also calls for the same fluid in the Front wheel transfer case and 4wheel drive assembly. Good Stuff.

Item Reviewed: 5W-30 Tractor Hydraulic/Transmission Oil (ATH)
Discussion Url

A Verified Buyer is an individual who has purchased the reviewed product and submitted their review through a specific process that tracks purchase history.Reviewed by jhous: space

Really worth it.

My tractor is full hydraulic; transmission, and of course front loader and rear implement lift. Everything worked faster and smoother without any warmup necessary. I did timings with the front loader. Full lift was definitely quicker with the AMSOIL. The thing that surprised me was that no warm up was required. With the regular hydraulic oil the loader would take a long while to do a full lift (even with high revs). Not the case with AMSOIL. Immediate use even when cold. Just running the tractor (hydraulic transmission) was quieter also. I am a total fan of this product.

Item Reviewed: 5W-30 Tractor Hydraulic/Transmission Oil (ATH)
Discussion Url

Reviewed by dustin: space

jd 2305

great stuff, with the old jd oil my implements would slowly fall to the ground with this oil my implements stay in the air. what a difference and hydro is quieter.

Item Reviewed: 5W-30 Tractor Hydraulic/Transmission Oil (ATH)
Discussion Url
