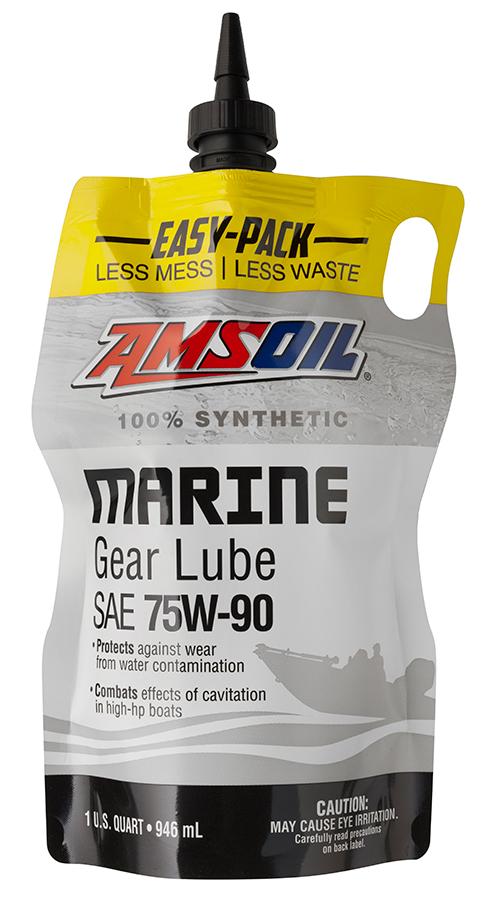

High Performance lubricant engineered to meet the demands of marine applications. AMSOIL Universal Synthetic Marine Gear Lube provides:
• Excellent Gear and Bearing Protection even when contaminated with 10% water
• Reduced Friction and Wear
• Rust and Corrosion Protection
• Long Seal Life
• Superior Foam Prevention
Package sizes include:
1-Quart Easy Pack
AMSOIL Universal Synthetic Marine Gear Lube is recommended for fresh and salt water applications requiring either 75W-90 or 80W-90 viscosity grade and meeting either API GL-4 or GL-5 performance standards.
Examples of AMSOIL Universal Synthetic Marine Gear Lube applications include:
Outboard Lower Units:
• Force/US Marine
• Harbormaster Marine Outboard Drives
• Sears Gamefisher and Seagull
• Marine Drive Systems
• Casale & Menkens
Bow & Tunnel Thrusters:
• Harbormaster Marine
• ZF Marine Transmission
AMSOIL Universal Synthetic Marine Gear Lube is an exclusive AMSOIL formulation of synthetic base oils and high performance additives that address the specific concerns of marine applications. It is extreme pressure (EP) additive fortified for superior protection of fast accelerating, high torque/horsepower engines. It protects against shock loading from cavitation of heavily loaded engines.
AMSOIL Universal Synthetic Marine Gear Lube is water resistant. It maintains extreme pressure protection even when contaminated with as much as 10% water. It promotes longer seal life, preventing excessive water leakage. AMSOIL Universal Synthetic Marine Gear Lube protects against rust and is compatible with aluminum, copper and brass alloys.
Marine gear oils operate in environments subject to water contamination. The chart below demonstrates the ability of AMSOIL Universal Synthetic Marine Gear Lube to maintain designed qualities such as extreme pressure/anti-wear performance and resistance to foaming, even when subjected to 10% water contamination.
The Falex Procedure is measurement of a gear lube's extreme pressure and anti-wear properties. A high value in the Falex Extreme Pressure Test relates to extra extreme pressure protection. AMSOIL Universal Synthetic Marine Gear Lube is not affected by water and provides 50% more extreme pressure protection for long gear and bearing life.
The presence of foam in a lubricant disrupts oil film and promotes wear. Water contamination can increase the likelihood of foaming. Industry standard testing demonstrates zero foam in both new and water-contaminated AMSOIL Universal Synthetic Marine Gear Lube. Other conventional gear lubes can foam when mixed with water, as seen in the graph.
Extreme Pressure and Foam Stability Testing
AMSOIL Universal Synthetic Marine Gear Lube (AGM)
Conventional Gear Lube (A)
Conventional Gear Lube (B)
|FALEX Extreme Pressure Load Test B (LbF) |
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS).
Click here to view the MSDS Data Sheet for AMSOIL AGM.
Keep out of the reach of children. Don't pollute. Return used oil to collection centers.
|TYPICAL TECHNICAL PROPERTIES |
AMSOIL Universal Synthetic Marine Gear Lube75W/80W-90 (AGM)
|Kinematic Viscosity @ 100°C, cSt (ASTM D-445)||14.7|
|Kinematic Viscosity @ 40°C, cSt (ASTM D-445)||116.0|
|Viscosity Index (ASTM D-2270)||130|
|Flash Point °C (°F) (ASTM D-92)||216 (420.8)|
|Pour Point °C (°F) (ASTM D-97)||-43 (-45)|
|Falex Procedure B (ASTM D-3233) (failure load, LbF.)||1500|
|Foam Stability (ASTM D-892) (20/50/20 maximum)||0/0/0|
Reviewed by EZ:
Wouldn't use anything else...28ft pontoon...125hp 4stroke...
Reviewed by RMC:
I been using Amsoil Synthetic Marine Gear Lube on my 2017, 115hp Yamaha outboard. This product is awesome product. So far everytime I change my gear oil it's been clean with no water, it helps in smooth shifting. Excellent product, I would recommend this product for all outboard gear oil.
Reviewed by Bobby:
This has protected my lower unit for the last 12 years and my internal parts still look brand new.
Reviewed by Aido:
I use this in my work boat every day from ice out to ice in on Georgian Bay. Shifts smooth and always stays clean.
Reviewed by Bill:
I use this for Mercury outboard gear cases and it has never let me down.
Reviewed by Michael:
Bought an 89 Boat with a Cobra out drive. Previous owner had used amsoil and gave me a quart with the purchase. Once I drained the out drive for winter and saw the oil coming out I got more. This stuff is fantastic
Reviewed by Dan:
I use this in my 225 Yamaha and my 9.9 kicker for my Lund 2025. It s the only oils for my Yamahas.
Reviewed by D:
Reviewed by Scarab Jim:
I use this product in the Alpha One Gen. II outdrives on my twin engine Scarab. I`m pushing 400hp. through them and they continue to hold up because of this gear lube.
Reviewed by Rick:
Just bought Amsoil Gear Lube and have only praise for their Customer Support. They went the extra mile to make sure my buying experience went smoothly.
