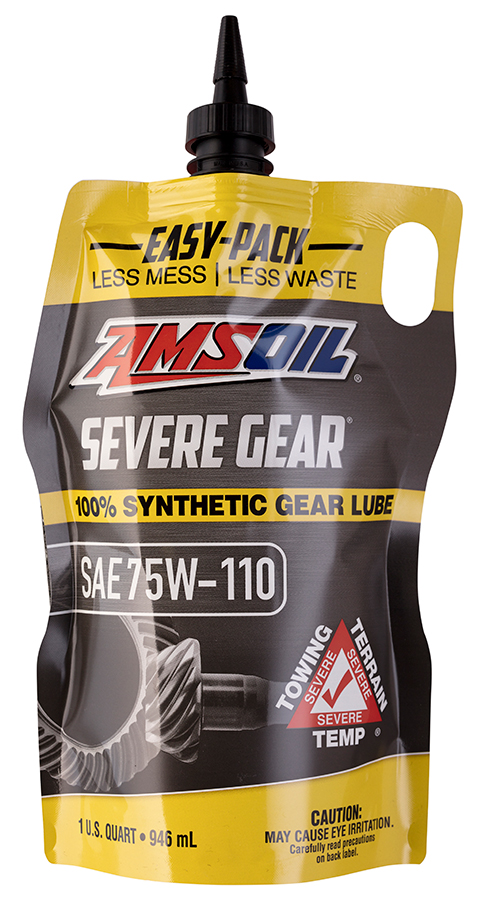

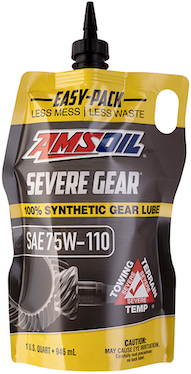

AMSOIL SEVERE GEAR® Synthetic Extreme Pressure (EP) Lubricants are engineered for high-demand applications, including trailer towing, heavy hauling, 4X4 off-road driving, commercial use and racing. Protects gears and bearings from scoring and wear. Excellent cold-flow properties. Outperforms all conventional gear oils. Recommended for all types of vehicles.
AMSOIL SEVERE GEAR Synthetic EP Gear Lube is excellent for severe applications, such as towing, hauling, steep-hill driving, commercial use, plowing, racing, off-road use, rapid acceleration, frequent stop-and-go operation and high ambient temperatures. Higher horsepower, towing and hauling capabilities of modern vehicles make turbo-diesel pick-ups, SUVs, vans and delivery/utility vehicles especially prone to severe service. Other severe-duty vehicles include light, medium and heavy-duty trucks, buses, heavy equipment, 4X4s, tow trucks, race cars, tractors and motor homes.
AMSOIL SEVERE GEAR® Synthetic Extreme Pressure (EP) Gear Lube is a premium-grade gear oil specifically engineered for maximum performance in severe-duty applications. This state-of-the-art AMSOIL formulation features an exclusive blend of high-viscosity, shear-stable synthetic base oils and an extra treatment of high-performance additives. AMSOIL SEVERE GEAR Synthetic EP Gear Lube maintains its viscosity for long-lasting protection against metal-to-metal contact. The proprietary AMSOIL additives form an iron-sulfide barrier coating on gear surfaces,
providing the ultimate line of defense against wear, pitting and scoring. AMSOIL SEVERE GEAR helps prevent "thermal runaway" - a phenomenon caused by a lubricant's inability to control friction and increased heat under high-stress conditions. By controlling thermal runaway, AMSOIL SEVERE GEAR Synthetic EP Gear Lube inhibits rapid lubricant degradation and component damage. Equipment runs better and lasts longer with AMSOIL SEVERE GEAR Synthetic EP Gear Lube.
AMSOIL SEVERE GEAR provides performance beyond that possible with conventional gear oil. This AMSOIL custom product offers superior gear and bearing protection, better friction and heat reduction, increased efficiency and extended service life.
AMSOIL SEVERE GEAR EP Gear Lube excels in hot and cold temperature extremes. By design, it resists breakdown from high heat, preventing acids and carbon/varnish formation. Its wax-free construction also improves cold-flow properties, improving fuel economy and cold-weather shifting.
Some gear lubes fail to meet basic low-temperature requirements. Mobil 1 75W-140 Gear Oil, for example, failed to meet the requirements of the industry standards, AMSOIL SEVERE GEAR®, on the other hand, delivers 20% more cold-temperature protection than the standard requires. It delivers better cold-temperature protection than Mobil 1 and Valvoline SynPower.
• Advanced protection against wear, even with up to 15 percent water contamination 1
• Controls Thermal Runaway
• Protects against rust and corrosion
• Helps reduce operating temperatures
• Maximum efficiency
• Flexible easy-pack for clean, fast installation
• For product service life in differentials, consult your owner's manual or the Original Equipment Manufacturer (OEM) to establish the application, NORMAL or SEVERE.
1 Based upon AMSOIL testing of AMSOIL Synthetic SEVERE GEAR® 75W-90 and Long-Life 75W-90 Synthetic Gear Lube in ASTM 3233 and ASTM D892.
2 Based upon results of samples of Mobil 1 75W-140 and Valvoline SynPower 75W-140 purchased in 2018 and tested in ASTM D2983 by an independent testing facility in May 2018. Samples sent blind to eliminate bias.
* All trademarked names and images are the property of their respective owners and may be registered marks in some countries. No affiliation or endorsement claim, express or implied, is made by their use. All products advertised here are developed by AMSOIL for use in the applications shown.
|Cars, SUVs, Light Trucks||Drain at 100,000 miles of service or according to the owner's manual, whichever is longer||Drain at 50,000 miles of service or according to the owner's manual, whichever is longer|
|Heavy-Duty Class 8 Line Haul||Follow the OEM drain interval (miles or hours) for synthetic oil up to 250,000 miles or three years, whichever comes first.|
|Vocational/Delivery||Follow the OEM drain interval (miles or hours) for synthetic oil up to 120,000 miles or three years, whichever comes first.|
|Heavy Duty Off-Road||Follow the OEM drain interval (miles or hours) for synthetic oil up to 100,000 miles or two years, whichever comes first.|
For product service life in non-differential applications, consult owner’s manual or the OEM for either normal or severe synthetic oil service intervals. Where service intervals are unavailable, drain at twice the interval for conventional oil.
Gear oils should be changed more frequently when operating vehicles or equipment in dusty or dirty conditions unless the gear system is properly sealed and equipped with membrane type breathers.
Note: AMSOIL does not support extended drain intervals where water contamination occurs. Check and service the gear oil frequently when water contamination is possible.
Recommended for use in differentials, manual transmissions and other gear applications requiring any of the following specifications: API GL-5, MT-1, MIL-PRF-2105E, Dana SHAES 234 (Formerly Eaton PS-037), Mack GO-J, or other GL-5 based specifications from vehicle manufacturers, including Ford*, GM* and Chrysler*. Can also be used in axles where an API GL-4 lubricant is recommended.
AMSOIL SEVERE GEAR (75W-110) provides superior performance and replaces competitors' 75W-110, 80W-110 and 85W-110 gear oils. Use where these viscosities are required by OEMs and where maximum viscosity protection is needed for extreme severe-duty applications.
AMSOIL SEVERE GEAR® is compatible with conventional and synthetic gear oils. Mixing AMSOIL gear oils with other oils, however, will shorten the oil life expectancy and reduce the performance benefits. AMSOIL does not support extended drain intervals where oils have been mixed. Aftermarket oil additives, other than those specified by AMSOIL, are not recommended for use with AMSOIL gear oils.
AMSOIL SEVERE GEAR® is compatible with most limited slip differentials. If limited slip differential chatter occurs, add AMSOIL Slip-Lock friction modifier additive.
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS).
Keep out of the reach of children. Don't pollute. Return used oil to collection centers.
|TYPICAL TECHNICAL PROPERTIES |
|AMSOIL SEVERE GEAR® Synthetic Extreme Pressure (EP) Lubricant 75W-110 (SVT)|
|Kinematic Viscosity @ 100°C, cSt (ASTM D-445)||20.9|
|Kinematic Viscosity @ 40°C, cst (ASTM D-445)||139.9|
|Viscosity Index (ASTM D-2270)||174|
|Brookfield Viscosity, cP (150,000 Max) @-40°C||102,100|
|Flash Point, °C (°F) (ASTM D-92) 150°C Min.||216 (421)|
|Pour Point, °C (°F) (ASTM D-97)||-44 (-47)|
|Copper Corrosion (ASTM D-130) 1b Max @ 121 °C (250°F) / 3hr||1b|
|Foam Stability (ASTM D-892)||0/0, 20/0, 0/0|
Differential & Transfercase can get destroyed if neglected. This tip can help avoid expensive repairs.
