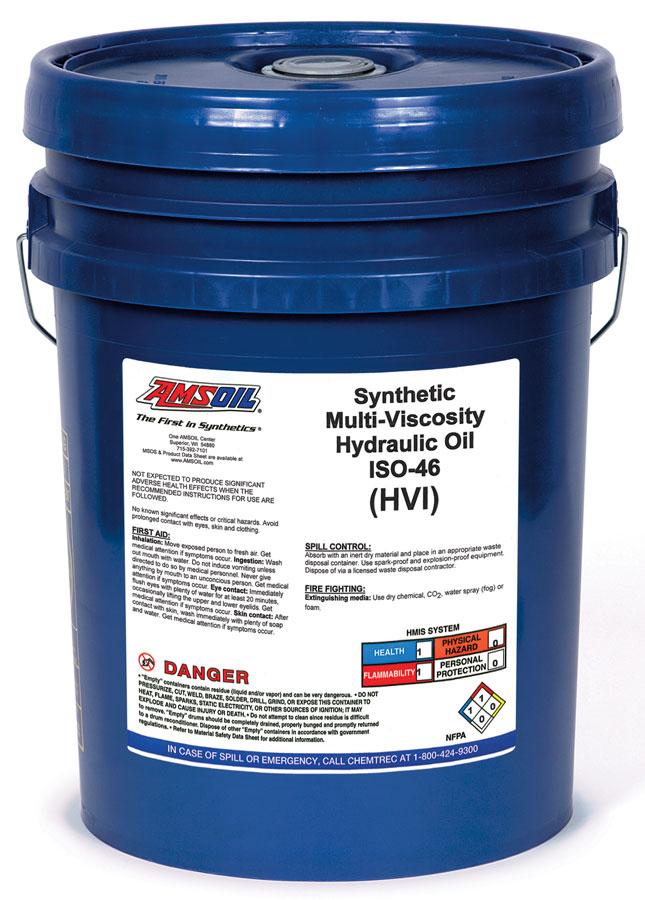

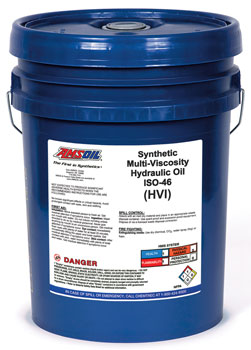

Synthetic HV Hydraulic Oil ISO 46 (HVI)

 Synthetic HV Hydraulic Oil ISO 46 (HVI)
Product Code: HVI • Brand: AMSOIL

Synthetic Multi-Viscosity Hydraulic Oil is formulated with varnish-control technology to keep hydraulic systems cleaner for long life and reliable operation. It resists breakdown in the presence of heat while remaining fluid when cold to keep valves, pumps, servos and other components clean, protected and long-lasting. Synthetic Multi-Viscosity Hydraulic Oil is the perfect solution to the common problems that plague hydraulic applications, helping you save money.

Package sizes include:

5-Gallon Pail
55-Gallon Drum
275-Gallon Tote

See Pricing or Place an Order
MSDS Data Sheet

Product Details

Product Applications

The correct viscosity grade of AMSOIL Synthetic Multi-Viscosity Hydraulic Oil is recommended for high- and low-pressure gear, vane and piston stationary and mobile hydraulic systems, including those with bronze metallurgy. It is recommended for all types of applications requiring the following industry and equipment specifications:

Stock Code
Parker Hannifin (Denison) HF-0, HF-1, HF-2
Vickers I-286-S, M-2950-S
DIN 51524 Parts 2 & 3
Cincinnati Milacron P-68
Cincinnati Milacron P-70
Cincinnati Milacron P-69

Product Description

Maximum Cleanliness: Synthetic Multi-Viscosity Hydraulic Oil is fortified with anti-varnish additives that chemically react with the building blocks of varnish, inhibiting its formation. It helps hydraulic systems remain clean for solid performance, immediate response and fewer breakdowns.

Excellent Year-Round Protection

Multi-Viscosity Hydraulic Oil's naturally heat-resistant base oils resist thermal break-down and maintain their protective viscosity, allowing formation of a strong lubricating film for excellent wear protection. Because it doesn't contain the waxes inherent to conventional fluids, it flows more readily in cold temperatures, meaning bearings and other components receive almost immediate lubrication at start up, reducing long-term wear and instances of pressure spikes and erratic operation as a result of poor fluidity.

• All-season performance
• Maintains cleanliness
• Promotes maximum fluid life
• Resists foam
• Maximizes energy efficiency

Varnish-Control Technology

Increased heat can cause varnish to form on metal surfaces, including valves, pumps and bearings. Its soft, sticky composition ultimately hardens into a harmful veneer that can reduce fluid flow, plug filters, stick valves and increase friction. Synthetic Multi-Viscosity Hydraulic Oil is fortified with anti-varnish additives that chemically react with the building blocks of varnish, inhibiting its formation. It helps hydraulic systems remain clean and long-lasting.

• Increases convenience and reduces costs due to all-season performance
• Formulated to reduce maintenance costs with anti-wear and anti-varnish chemistry
• Promotes maximum fluid life by resisting viscosity loss and chemical breakdown
• Designed to increase system performance and responsiveness through foam suppression and fast air-release properties
• Helps reduce energy costs due to high-viscosity-index, energy-efficient formulation

Fights Component Wear

Synthetic Multi-Viscosity Hydraulic Oil features a shear-stable formulation fortified with the latest zinc-type anti-wear additives. It meets the stringent viscosity-retention requirements of Parker Hannifin* (Denison*) HF-0 and demonstrates excellent anti-wear performance and compatibility with yellow metals in standardized laboratory and pump manufacturer tests (see below). Synthetic Multi-Viscosity Hydraulic Oil demonstrates excellent protection for pumps, motors, valves and other components against wear.


This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS).

Click here to view the MSDS Data Sheet for AMSOIL HVI.

Keep out of the reach of children. Don't pollute. Return used oil to collection centers.

Technical Data

Typical Technical Properties
Synthetic HV Hydraulic Oil HVG
ISO 22
ISO 32
ISO 46
ISO 68
ISO VG (ASTM D 2422) 22 32 46 68
Kinematic Viscosity @100°C cSt (ASTM D 445) 5.2 6.5 8.5 11.2
Kinematic Viscosity @40°C cSt (ASTM D 445) 23.6 31.8 46.7 68.5
Viscosity Index (ASTM D 2270) 161 165 161 155
Flash Point °C (°F) (ASTM D 92) 228 (442) 224 (435) 246 (475) 252 (486)
Fire Point °C (°F) (ASTM D 92) 242 (468) 246 (475) 266 (511) 270 (518)
Pour Point °C (°F) (ASTM D 97) -49 (-56) -46 (-51) -44 (-47) -41 (-42)
Four-Ball Wear Test (ASTM D 4172B) (40 kg, 1200 rpm, 75° C, 60 min.) 0.42 0.42 0.41 0.41
Copper Strip Corrosion Test 100°C, 3 hrs. (ASTM D 130) 1A 1A 1A 1A
Foam (ASTM D 892, Sequence I, II & III) 0/0, 10/0, 0/0 0/0, 10/0, 0/0 0/0, 10/0, 0/0 0/0, 35/0, 0/0
Demulsibility (ASTM D 1401) 40-40-0 (20) 40-40-0 (25) 40-40-0 (20) 40-40-0 (20)
Dielectric Strength (ASTM D877) Voltage, kV AC 47 45 44 45
Seal Tests Elastomer SRE-NBR 1, 100°C, 168 hrs. (ASTM D 471) Pass Pass Pass Pass
Rust Testing
Distilled and Salt Water (ASTM D 665A & B)
Pass Pass Pass Pass
KRL Shear Test, 15% Max KV loss, Stay-in-Grade Pass Pass Pass Pass
