Protects hard-working hydraulic systems from the stress of high-pressure, high-load and heavy-duty operations. Remains fluid in cold temperatures for immediate cold-weather flow. Special anti-wear additives and rust inhibitors provide optimum protection to expensive equipment.
Package sizes include:
The correct viscosity grades of AMSOIL Synthetic AW Series Anti-Wear Hydraulic Oils are recommended for high- and low-pressure gear, vane and piston stationary and mobile hydraulic systems. They are excellent for general-purpose use where extended drain intervals are desired and in severe-duty operations where temperature extremes are encountered.
AMSOIL AW Series Oils are compatible with hydraulic system seals, petroleum hydraulic oils and most synthetic hydraulic oils*. For optimum performance, it is recommended the system be thoroughly drained and, if warranted, cleaned prior to installation. Oil analysis is recommended to maximize oil drain intervals.
* Not compatible with phosphate ester, silicone or water-based fluids.
• Denison HF-0, HF-1 and HF-2
• Vickers M-2950-S and I-286-S
• Cincinnati Milacron P-68, P-69 and P-70
• U.S. Steel 127
• Racine, variable volume vane pumps
• DIN 51524, Parts 2 and 3 HLP22-HLP46
• ASTM D-6158 HV
• AFNOR E 48-603*
• Ford M6C32
• GM LH-04-1, LH-06-1 and LH-15-1
• Lee Norse 100-1
• Jeffrey No. 87
• BF Goodrich 0152
• Commercial Hydraulics*
* Except for PM-500 series silver-containing pumps which require R&O additive systems.
AMSOIL Synthetic AW Series Anti-Wear Hydraulic Oils are shear-stable, long-life lubricants based on high-quality synthetic oil technology. These oils are formulated with a premium additive system that inhibits oxidation to help prevent acid formation and viscosity increase and inhibit rust and foam (providing smooth hydraulic operation). AW Oils contain a very effective zinc-based anti-wear/antioxidant additive which controls wear in high-speed, high-pressure vane and gear pumps while meeting the lubrication requirements of axial piston pumps with bronze-on-steel metallurgy. Improved pump efficiency can increase hydraulic power, reduce fuel consumption and improve productivity. AW Oils are designed for long life and can typically reduce maintenance costs by extending drain intervals and reducing labor costs, repairs and downtime.
AMSOIL synthetic base oils resist thermal and oxidative breakdown and work to prevent carbon and varnish deposits. The very high viscosity indices, low pour points and lack of paraffins (wax) make these good all-season lubricants well suited for high and low temperature extremes. At high temperatures and pressures, AW Oils provide a good lubricating film and protect components against wear. During cold-temperature operation, equipment starts easier and the need for preheating with sump heaters is reduced. The AW Series base oils also readily separate from water, preventing oil/water emulsions that inhibit lubrication and allowing for longer lubricant life and easier water drainage from the sump.
• Antiwear protection for high-pressure systems
• Recommended for gear, vane and piston pumps
• Contain rust, oxidation and foam inhibitors
• Designed for extreme temperature operations
• Hydrolytically stable and readily separates from water
AMSOIL Industrial Lubricants are formulated to meet or exceed accepted industry specifications. AMSOIL warrants that the use of its lubricants will not cause mechanical damage to any mechanically sound equipment when AMSOIL products are used in full compliance with the company's recommendations. However, the purchaser of these lubricants is responsible for determining if these specifications are adequate and proper for the intended application. The AMSOIL warranty is limited to lubricant performance consistent with indicated specifications. No additional warranty, expressed or implied, can be made.
AMSOIL products are available in 5-gallon pails, 30-gallon drums (AWH only), 55-gallon drums, 275-gallon totes and bulk quantities. For 275-gallon totes, please allow two to four weeks for delivery.
AMSOIL Industrial Lubricants are stocked in Superior, Wisconsin and in select regional distribution centers throughout the United States and Canada. AMSOIL will stock additional quantities of lubricants or special order products based on customer requests and regional demands.
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS).
Keep out of the reach of children. Don't pollute. Return used oil to collection centers.

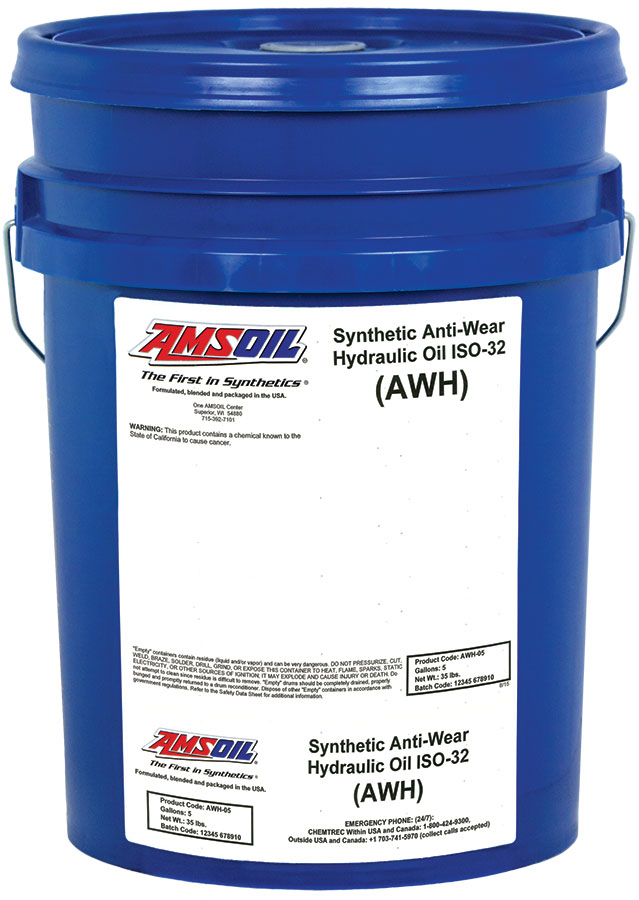

|AMSOIL Synthetic Anti-Wear (AW) Hydraulic Oil, ISO-32 (AWH)|
|ISO Viscosity Grade (ASTM D2422)||32|
|Viscosity @ 100°C, cSt (ASTM D445)||7.4|
|Viscosity @ 40°C, cSt (ASTM D445)||33.1|
|Viscosity Index (ASTM D2270)||200|
|Specific Gravity, g/mL (ASTM D1298)||0.8453|
|Density, lb/gal (ASTM D1298)||7.038|
|Flash Point °C (°F) (ASTM D92)||228 (442)|
|Fire Point °C (°F) (ASTM D92)||248 (478)|
|Pour Point °C (°F) (ASTM D97)||<-51 (<-60)|
|Four-Ball Wear Test (ASTM D4172) (40 kg, 1200 rpm, 75°C, 1 hr)||0.45|
|Copper Strip Corrosion Test (ASTM D130)||1A|
|Foam Tendency, Seq. I, II, III (ASTM D892)||0/0, 0/0, 0/0|
|Dielectric Strength, voltage, kV AC (ASTM D877)||46.2|
|Demulsibility (ASTM D1401)||40-40-0 (10)|
|Rust Test (ASTM D665 A & B)|
Fresh Water and Synthetic Sea Water
