AMSOIL 10W-30 Excels in
API Sequence IIIF Test
 The Sequence IIIF test is a stringent
API SL, ILSAC GF-3 test designed to measure oil thickening
and piston deposits in high temperature service, as
well as provide information on valve train wear. The
test is designed to emulate high-speed service under
high ambient conditions.
OBJECTIVE
Subject AMSOIL 10W-30 Synthetic Motor Oil (ATM) to
an independent API Sequence IIIF Test to determine
its effectiveness in preventing deposit formation
and providing wear protection in high temperature
conditions.
SPECIAL CONDITIONS
Because AMSOIL is formulated to provide superior performance
over extended drain intervals, testing was allowed
to continue for 240 straight hours, three times the
length of the standard Sequence IIIF test.
TEST PROCEDURE
Testing is conducted with a 1996 model Buick 3800
Series II, water-cooled, four-cycle, V-6 engine. The
test engine is an overhead valve design (OHV) with
a single camshaft operating the intake and exhaust
valves through pushrods and hydraulic valve lifters
in a slider-follower arrangement, and it has one intake
and one exhaust valve per cylinder. Induction is performed
through a modified GM port fuel injection system with
the air-to-fuel ratio set to 15:1.
Running unleaded gasoline, testing begins with a 10-minute
initial oil leveling procedure before slowly working
its way up to test speed, temperature and load conditions.
Testing continues at 100 bhp, 3600 rpm and 155° C
oil temperature for 80 hours with oil checks performed
every 10 hours. Kinematic viscosity increase and wear
metals (Cu, Pb and Fe) are evaluated at every 10-hour
interval.
At the end of 80 hours, all six pistons are inspected
for deposits and varnish, camshaft and lifters are

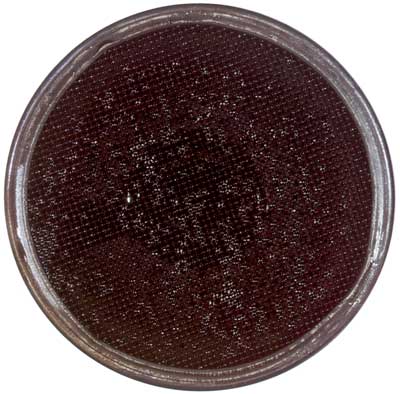

measured for wear and oil screen plugging is evaluated.
Sequence
IIIF
Test Parameters |
AMSOIL
10W-30 (ATM)
Triple Length (240 hr.) |
API
SL Limits
(80 hr.) |
| Kinematic
Viscosity, % Increase at 40° C |
90.42 |
275
max. |
| Weighted
Piston Deposit Rating |
4.51 |
4.0
min. |
| Average
Piston Skirt Varnish Rating |
9.50 |
9.0
min. |
| Cam
Plus Lifter Wear Average |
11.8 |
20
max. |
| Hot
Stuck Rings |
0 |
None |
|
TEST
RESULTS
Even at three times the standard test length, AMSOIL
10W-30 performed three times better than the test
limit in the area of kinematic viscosity increase,
and it excelled in all areas of the test. AMSOIL 10W-30
Motor Oil kept viscosity increase, wear, deposits

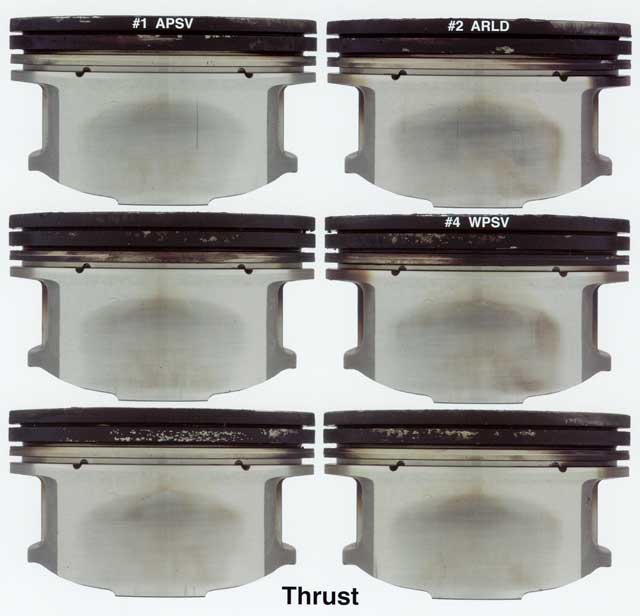

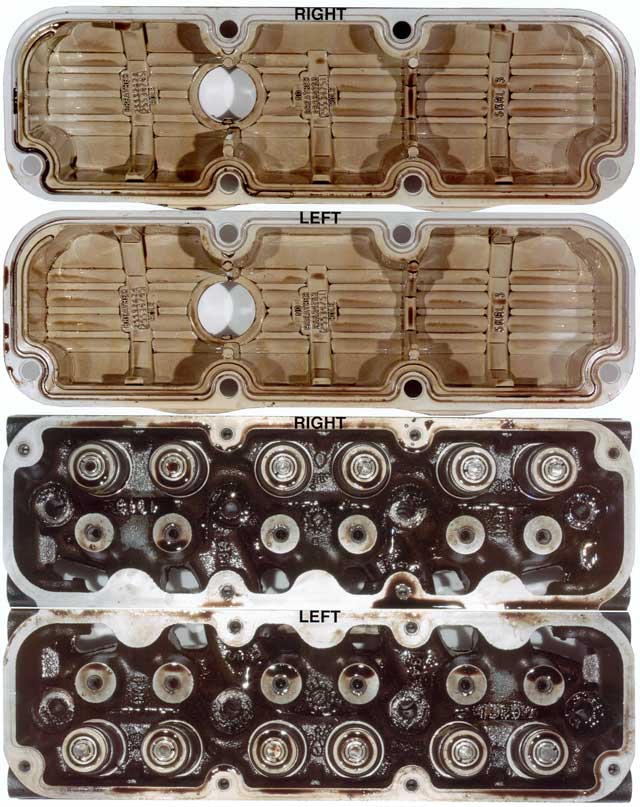

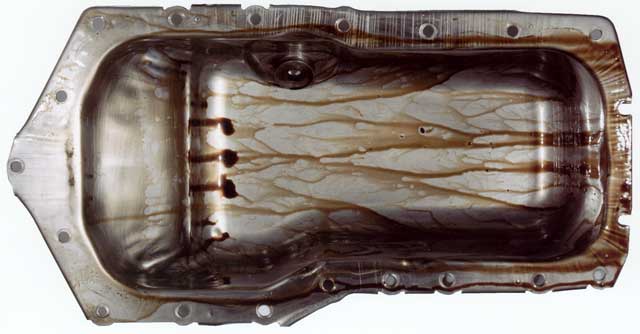

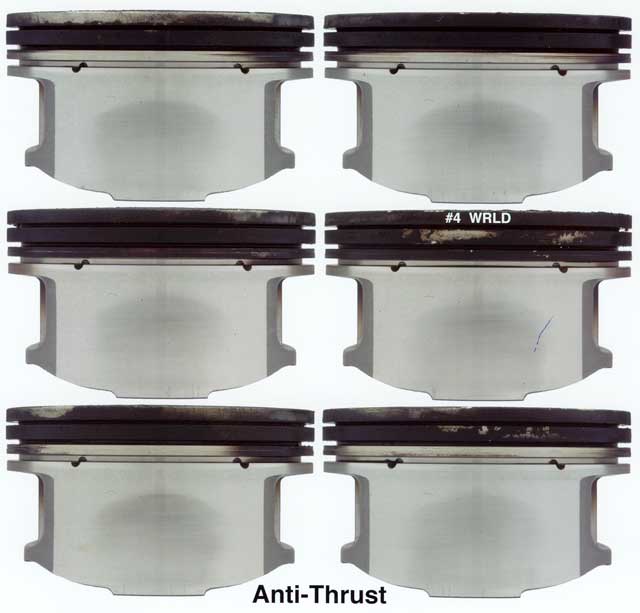

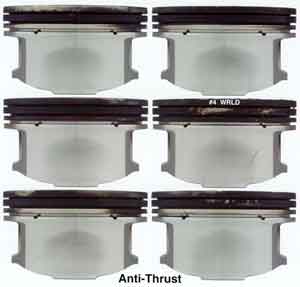

and varnish to a minimum. The pictures below demonstrate
the superior protection provided by AMSOIL Motor Oil
throughout 240 straight hours of Sequence IIIF testing.

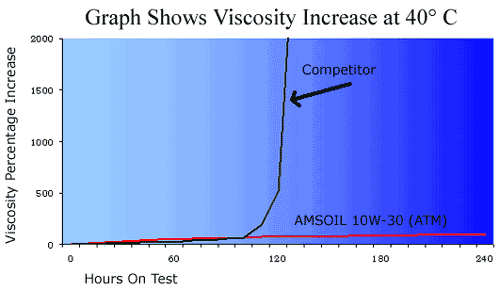

While
conventional motor oils tend to thicken and lose their
lubricating effectiveness, AMSOIL Motor Oils are formulated
to maintain their viscosities over extended drain
intervals. The results of the Sequence IIIF test clearly
demonstrate the long drain capability of AMSOIL 10W-30
Motor Oil. Even after being subjected to a triple
length Sequence IIIF test, AMSOIL 10W-30 performed
three times better than the standard test limits.
The competitor's motor oil shows dramatic viscosity
increase in less than half the time. |
|
